PDF, Inc. features state of the art CNC milling and drilling machines as well as manual equipment to provide our customers with high precision, cutting edge products. From design, to prototyping, to full scale production, our team of experts is dedicated to providing high quality and reliable solutions to meet and exceed the needs of our customers.

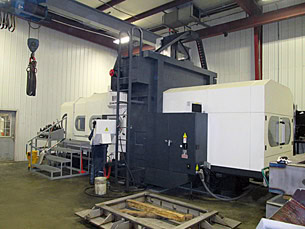

Mighty Viper Pro 3210
Travel is 120″ x 82.7″ 42″ of z travel Tap up to 1″ Spindle 6000 RPM 35HP We can hold within .0003 Thru spindle coolant Can hold 40 tools Renishaw probe on machine Right angle head

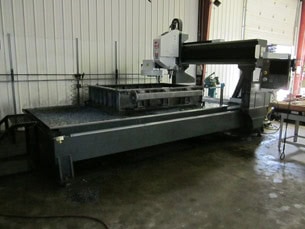

Haas GR712
We can machine 7′ x 12′ Z travel is 11 1/4 We can fit 86″ max through gantry Parts can be 20″ tall Tap up to 1″ Spindle 5000 RPM max We also have right angle head, we can face and drill with this We also have a Renishaw probe for this machine We can hold within .001

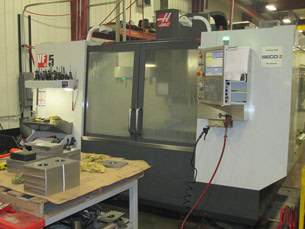

Haas VF5
Travel is 50″ x 26″ 25″ of z travel Tap up to 1″ Spindle 7500 RPM 30HP We can hold within .0005 Thru spindle coolant Renishaw probe on machine

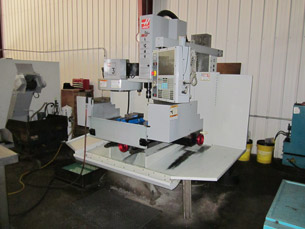

Haas TM3
Travel is 20″ x 40″ Parts can be 12″ tall Tap up to 5/8″ Spindle 4000 RPM 5HP We can hold within .002

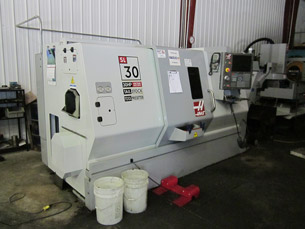

Haas SL30
Max diameter is 12″ short parts Z travel is 24″ Through spindle is 3″ We do have bar feed option 30HP We can hold within .001

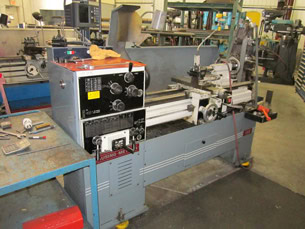

Clausing-Metosa Manual Lathe
1 1/2 through spindle 10″ diameter 26″ long part

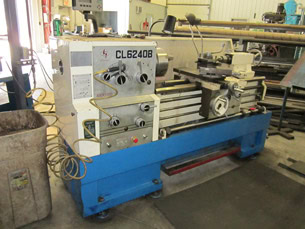

Lianji CL6240B Manual Lathe
3 1/4 through spindle 10″ diameter 26″ long part
Smart sm1165
Travel is 25 x 43 We have 24” in Z Tap up to 1-1/4 Spindle 8000 RPM 20HP We can hold within .0005 We have Renishaw probe Set-up for pneumatic fixturing Rapid 1,181 ipm Cutting feed rate 590 ipm
JET GH-2280ZX Manual Lathe
3-1/8 through spindle 22” diameter 80” long part 16” chuck Dro system
JET GH-1440 Manual Lathe
1-1/2 through spindle 14” diameter 40” long part 8” chuck
JET JTM-1050 Manual Mill
15”x29”x12” We have digital readouts
HYD-MECH S-20A Auto Saw
3-1/8 through spindle We can cut up to 5” very well 5”-12” we can cut, but might not be square Mastercam 2020 with productivity plus software
